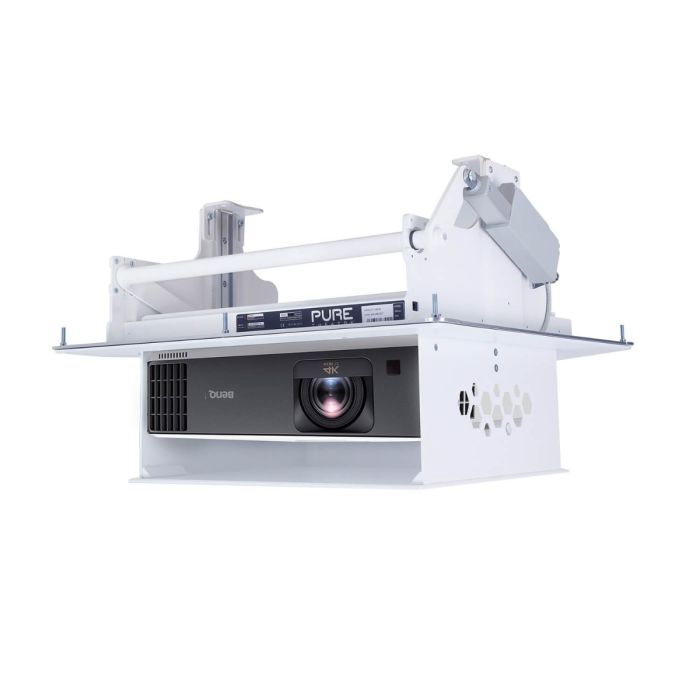

CR35 Projector Lift
The CR35 projector lift is one of our entry level retractable projector ceiling mount used to hide your projector into the ceiling when it's not being used. The motorised feature of the projector lift allows it to retract at the touch of a button.
Due to the small size of the projectors, the fitting of the lift has to be more accurate to ensure the lens is central to the screen and the throw distance is correct.

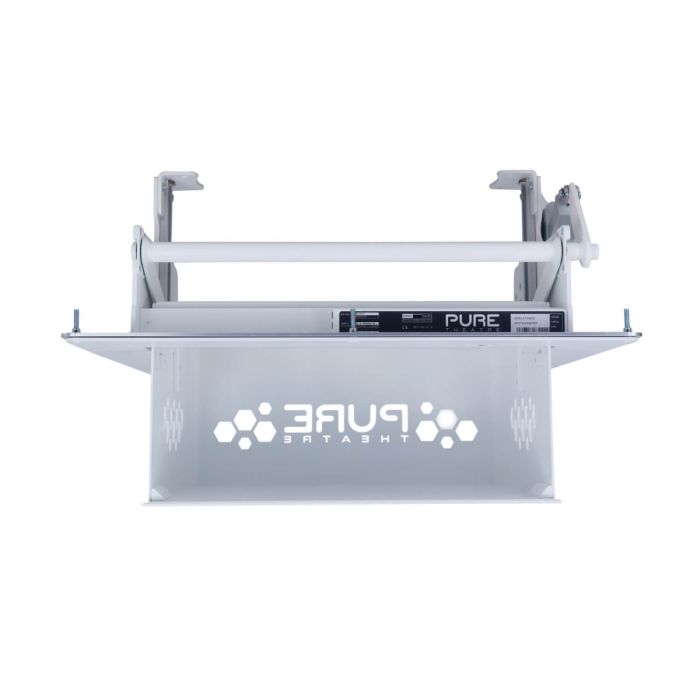

Rear View Dimensions
Looking from the rear view you can see that the width required above the plasterboard cutout is 590 mm.
Note that the minimum width above the plasterboard is wider then the plasterboard cutout, as the actuators are wider and these step over the plasterboard when installed.
A unique lightweight aluminium construction encases the projector whilst retaining a smooth exterior profile.
This enables home owners to have a fully recessed lift mechanism that is only seen when it’s meant to be.
As with our screens, lifts are designed with installation in mind, and can easily be fitted to standard ceilings creating the most compact in-ceiling projector lifts available.
Our unique mounting system means you don’t even have to paint the ceiling after fitting.
Built In Control System
Designed and programmed in-house, our control system provides the most advanced features of any screen in the world.
- 12v trigger/Dry Contact Input
- 12v trigger/IR Emitter Output
- RS232 Communication Port
Compatible with all known home automation systems
Quiet and Precise
Our 24v DC linear actuator drive motors provide the fastest, most reliable, and precise operation.
Linked to our own advanced current sensing control system ensures that the lift closes seamlessly every time with near silent operation of only 35dB.
Whether its the hi-tech Drylin linear bearings or the lightweight aerospace grade alloy construction, that we bond rather than weld for superior performance, we ensure every detail has been meticulously worked out to provide the perfect motorised lift.
Software Configuration App
Do you want to change the way the projector lift operates, update firmware, or simply see how many times it’s gone up and down?
Well now you can with our Control Pad software. Free to download, It has all the features you could possibly need.
AVAILABLE IN YOUR CHOICE OF COLOUR
Pure Theatre Projector Lift's can be Powder Coated in-house to allow for a custom finish in your choice of colour. For an additional charge, our expert engineers can help to conceal your Projector Lift just that bit further to allow for an effortless blend into any chosen living space.
|Lift Dimensions (W x D x H)||54cm x 49cm x 21cm|
|Max. Projector (W x D x H)||38cm x 35cm x 19cm|
|Lifting Capacity||12 kg|
|Raise / Lower time||5 seconds|
|Power Supply||100-240VAC 50/60Hz|
|Power Usage||max: 375W / Stationary:|
|Warranty||5 years return to base|
|Weight (Kg)||9 Kg|
|Boxed Weight (Kg)||25.000000|
