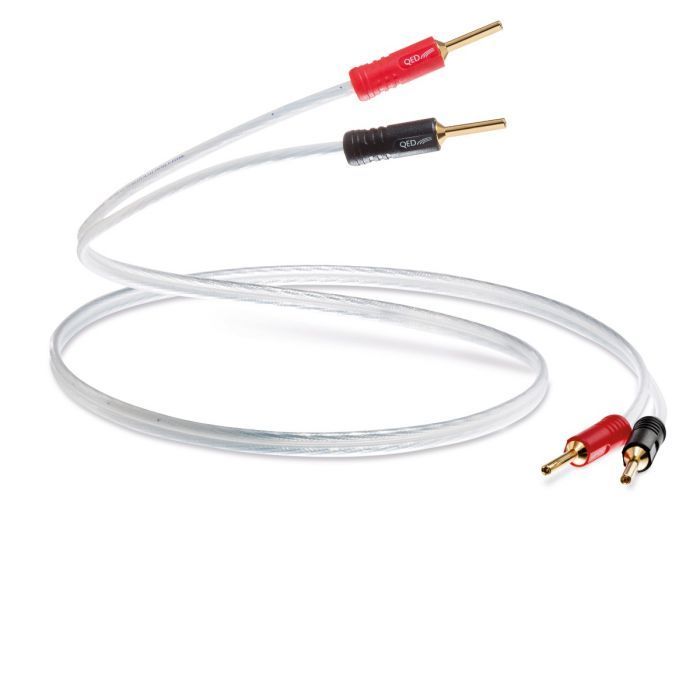

QED XT25 Performance Speaker Cable
With XT25 we tackle the proximity effect and the skin effect by combining our existing Aircore™ and X-Tube™ Technologies into a new X-Tube™ variation. By forming the conductors into a tube-like shape with a hollow centre, current densities at higher frequencies are maintained because the electric field which contributes towards the skin effect acts towards the centre of the conductor from where the conductive material has been removed.
Select Product Option for Lead Time
LEAD TIMES EXPLAINED
In Stock - Items marked as In stock are currently in our warehouse. Next day delivery is available at checkout If ordered before 2pm.
Available - Items marked as available are purchased from third parties, we try to give an accurate lead time but we cannot offer any guarantees.
Manufactured In-house - Items marked as such are manufacured to order right here at the Pure Theatre factory
Pre Order - Details of these items have been released by the manufacturer and are available to pre-order. We try to give an accurate lead time but we cannot offer any guarantees.
SKU QED-PERF-XT25
As low as: £79.95
As low as:
Description / QED XT25 Performance Speaker Cable
X-TUBE TECHNOLOGY
.jpg)
At low frequencies both X-TubeTM and conventional stranded/solid core speaker cables convey signals in a linear way. However, at high frequencies, X-TubeTM retains a near-linear signal transfer, whereas the conventional cables fail to conduct uniformly across the entire conductor area.
In standard speaker cables at high frequencies current flow is highest at the periphery with rapidly deteriorating current density towards the centre of the conductor.
In standard speaker cables at high frequencies current flow is highest at the periphery with rapidly deteriorating current density towards the centre of the conductor.
The effect of this is to reduce the actual cross sectional area of the cable at 15kHz to less than 75% of that at low frequencies. This results in higher distortion and compromises the performance of the cable.
X-TubeTM with polycore technology exhibits much lower self-inductance and is therefore less affected by this problem. The polycore technology reduces loop inductance to levels only achievable using more costly and difficult to terminate cables.
The result is more high frequency detail, less distortion and greater performance.
X-TubeTM with polycore technology exhibits much lower self-inductance and is therefore less affected by this problem. The polycore technology reduces loop inductance to levels only achievable using more costly and difficult to terminate cables.
The result is more high frequency detail, less distortion and greater performance.
X-Tube™ technology first came to prominence in 2005 with the launch of the world renowned Silver Anniversary XT, the most highly regarded mid-range cable in the world, winning the What Hi-Fi Product of the Year three years in a row. These design principles also grace the multiple award winning XT40 speaker cable and XT25.
As frequency increases, electrons flow more and more towards the periphery of a conductor so that if the frequency is high enough only a very thin layer (or skin) on the outside of the conductor is used. This “skin depth” varies for different materials at a fixed frequency and in copper it means that if a conductor has larger than 0.66 mm² cross-sectional area not all of that area is available for an analogue music signal to use. In SAXT the “skin effect” problem was effectively eliminated by the use of X-Tube™ Technology which works by placing all of the conducting material around a central hollow insulating rod. However, for a.c. signals, changing magnetic fields generated by the flow of current set up eddy currents in nearby conductors which force current to flow only in areas furthest away from conductors carrying current in the same direction and vice versa.
Specification
| SKU | QED-PERF-XT25 |
|---|---|
| Lead Time | Select Product Option for Lead Time |
| Manufacturer | QED |
