Pure Theatre CR70 Projector Lift
Our CR70 Ceiling Recessed Projector Lift is our largest stock lift for concealing the projector in your ceiling space. Ideal for the Epson EH-LS10000/10500 and Sony VPL-VW1100ES, Sony VPL-VW760ES

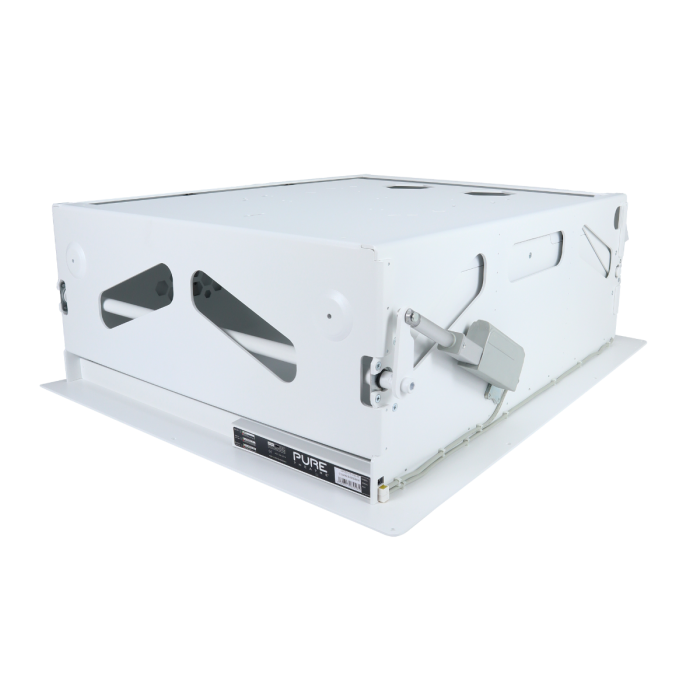

CR70 Projector Lift
The CR70 projector lift is one of opur larger projector mounts used to hide your projector into the ceiling when it's not being used.
The CR70 Lift fits larger specialist projectors for high end installs
Side View Dimensions
The side view shows the CR70 lift requires 10" joists, with a distance of 785mm between joists. It is normal to trim a section from one joist to fit the lift.
Rear View Dimensions
Looking from the rear view you can see that the width required above the plasterboard cutout is 780mm.
Note that the minimum width above the plasterboard is wider then the plasterboard cutout, as the actuators are wider and these step over the plasterboard when installed.
A unique lightweight aluminium construction encases the projector whilst retaining a smooth exterior profile.
This enables home owners to have a fully recessed lift mechanism that is only seen when it’s meant to be.
As with our screens, lifts are designed with installation in mind, and can easily be fitted to standard ceilings creating the most compact in-ceiling projector lifts available.
Our unique mounting system means you don’t even have to paint the ceiling after fitting.
Built In Control System
Designed and programmed in-house, our control system provides the most advanced features of any screen in the world.
- 12v trigger/Dry Contact Input
- 12v trigger/IR Emitter Output
- RS232 Communication Port
Compatible with all known home automation systems.
Quiet and Precise
Our 24v DC linear actuator drive motors provide the fastest, most reliable, and precise operation.
Linked to our own advanced current sensing control system ensures that the lift closes seamlessly every time with near silent operation of only 35dB.
Whether its the hi-tech Drylin linear bearings or the lightweight aerospace grade alloy construction, that we bond rather than weld for superior performance, we ensure every detail has been meticulously worked out to provide the perfect lift.
Software Configuration App
Do you want to change the way the projector lift operates, update firmware, or simply see how many times it’s gone up and down?
Well now you can with our Control Pad software. Free to download, It has all the features you could possibly need.
|Lift Dimensions (W x D x H)||68cm x 71cm x 20cm|
|Max. Projector (W x D x H)||55cm x 70cm x 23cm|
|Lifting Capacity||50 kg|
|Raise / Lower time||5 seconds|
|Power Supply||100-240VAC 50/60Hz|
|Power Usage||max: 375W / Stationary:|
|Warranty||5 years return to base|
|Packaged Weight (Kg)||25.0000|
|Box Height (cm)||22.0000|
|Box Width (cm)||22.0000|
|Box Length (cm)||182.0000|
