RTD1619DR hexa-core 64-bit A55 processor and 64 bit bandwidth with larger processing capability have provided stable and efficient computing for the system. 4G DDR4 RAM and 32GB eMMC storage have greatly meet the demand to install massive applications

NEO α(Alpha) supports HDR10, HLG and also HDR10+
The peak luminance of HDR10+ is up to 4000nits
Dynamic metadata is processed and output accurately frame by frame
That is, image color and luminance level is obtained frame by frame and scene by scene

ESS9038 Pro DAC chip is the core component of NEO α(Alpha) audio decoding. -122db THD+N and 140db dynamic range are benchmark indicators among the industry. Support up to DSD512 and PCM768@32bit, both performance and sound quality can meet the demand of audiophiles

NEO α(Alpha) is equipped with a 512G enterprise SSD for local music playback. High-quality digital music files can be easily stored, data reading is stable and fast. Heating and noise problem of traditional mechanical hard disk can be avoided

Equipped with a tailored multichannel DSD processing chip and clock reconstruction technology
Just for playing multichannel master recording music
Both multichannel DTS and DSD are supported
It is the first time to achieve DSD Native 5.1 lossless audio output from HDMI DSD port among the industry

Octa-core XMOS X216 audio processor can provide excellent digital audio processing with high-definition decoding, low latency, low jitter, and high flexibility. It also supports asynchronous transmission, PCM 768KHz, DSD 512 and 8x MQA decoding

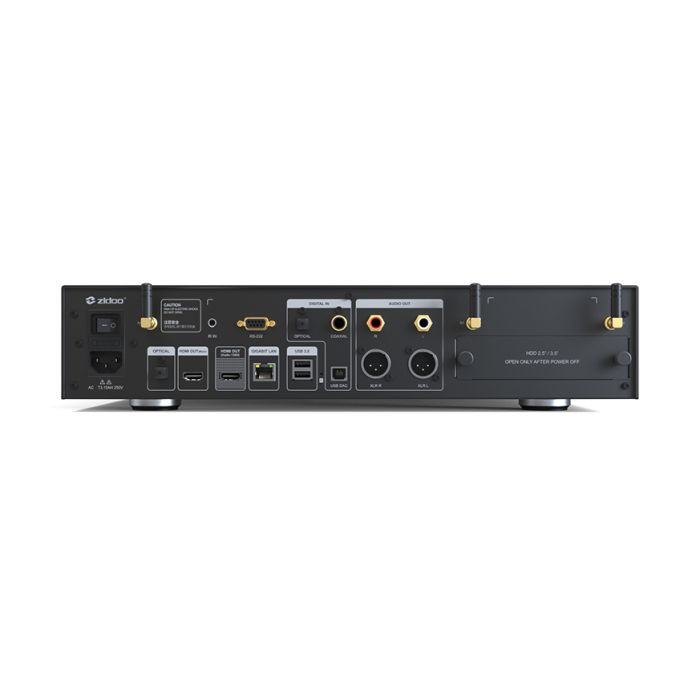

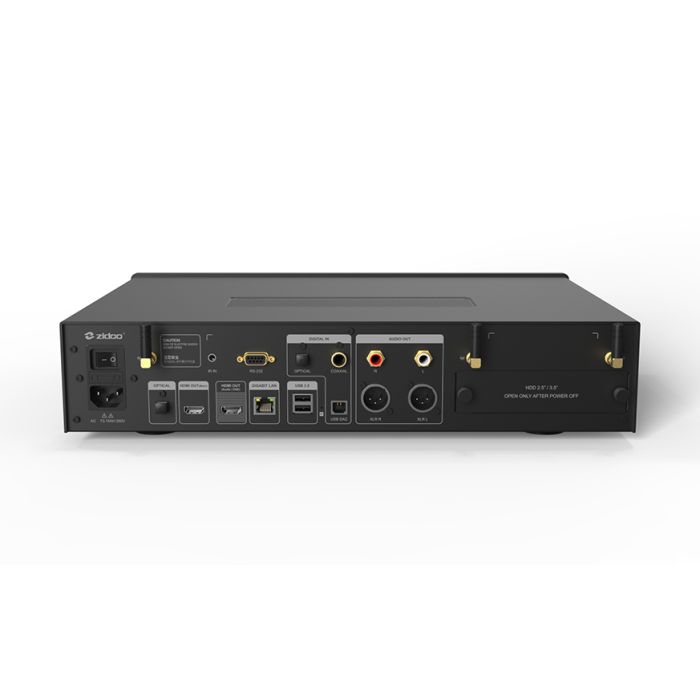

There are 2 HDMI ports for NEO α(Alpha)
HDMI 2.0a main output can output audio and video signals to 4K TV, projectors and A/V receiver
The other HDMI port(Audio/DSD) is designed to output audio signal only
It is not only compatible with HDMI 1.4 A/V receiver but also can output DSD Native 5.1
With independent high-precision clocks and thus better audio and video performance

With separate digital and analog power supplies to eliminate interference and improve the sound purity
Linear power supply designed for analog audio circuits
which is composed of multi-winding large toroidal transformers
While switching power supply is for digital circuits with lower ripple and magnetic leakage interference
With the patented technology of smart input voltage switching for linear power supply
it is compatible with voltages worldwide without flipping the switch

Multiple ports like USB DAC, Optical and Coaxial can be connected with various devices (computer, mobile phone, streamer, set-top box, CD player) to convert digital signal to analog signal by ESS9038pro DAC. No matter which way you use to play music, you will enjoy excellent sound quality

There are 2 ultra-low noise femtosecond high-precision clocks for audio decoding circuit (45.1584MHz and 49.152MHz), which correspond to 44.1KHz and 48KHz multiplied sampling. Jitter has been effectively suppressed. It ensures high-precision digital/analog conversion, provides ultra-high integrity and resolution for analog audio output and reproduces the real sound details from music studio

As an all-in-one preamp, the volume can be adjusted easily by volume knob, and it can connect with power amp and active monitor speakers. Both XLR and RCA signals are processed by balanced circuit with good noise immunity. Multi-stage operational amplifier buffering and amplification, unique low-distortion filter design and independent signal loop have greatly improve channel separation, maximize the dynamic range and sound integrity

6.35 headphone jack brings great convenience for headphone enthusiasts. The amp circuit adopts low ripple power supply, multi-level signal buffering, voltage and current staged amplifying processing, so that it has low noise, high current and large thrust. Two gain modes adjustment is to adapt different headphone in 16~300 ohm impedance range

With top hardware and advanced decoding algorithm
NEO α(Alpha) can play music from different storage devices like hard drive/computer/NAS/network disk
Supporting master recording files (SACD ISO/DFF/DSF/DSD)
and MQA and ordinary CD formats (FLAC, WAV, APE, DTS etc)
CUE track and gapless playback are also available

In order to obtain audio indicators and good sound quality, both circuit design and materials are rigorous, such as immersion gold PCB and anti-interference wiring. Audio components like 6pcs of operational amplifier, OMRON relay, WIMA and ELNA resistors are carefully chosen

NEO α(Alpha) incorporates popular music services like TIDAL, Qobuz, HIGHRESAUDIO. Music can be pushed from music apps installed in mobile phone, tablet and PC to NEO α(Alpha) via Airplay and DLNA protocols. TIDAL connect, Spotify connect and Roon Ready are also available

NEO α(Alpha) is good at managing music resource
Music files from network drives and local hard drive can be added conveniently
then generating exclusive music database
Manage music easily and enjoy lossless music as you wish

NEO α(Alpha) can play CD discs (DTS CD and MQA) by connecting with CD-ROM. CD ripping is based on ZIDOO HASH algorithm, album name and track names can be ripped losslessly, detailed album and artists info can be generated automatically

NEO α(Alpha) has a internal lossless Bluetooth receiver with Qualcomm flagship QCC5125 module. Supporting aptX/aptX LL/aptX HD/LDAC audio transmission to quick connect with mobile phone and tablet and enjoy CD quality music

Based on Linux video decoding and output framework, NEO α(Alpha) has less data loss and image quality with high reproduction. Clear voices and vivid images bring us excellent home theater experience

NEO α(Alpha) video decoding is based on Linux and supports almost all video decoding including 4K Dolby Vision and HDR10+. The output up tot 3840 x 2160 60Hz, HDR (Dolby Vision, HDR10+, HDR10, HLG), 12bit and BT.2020 wide color range
