DALI PHANTOM H-50 In-Wall Speaker | Pair

Dali Phantom H-50 In-Wall Speaker delivers impressive clarity, and despite its size, it manages to generate a great deal of bass. The Phantom H-50 is equipped with a 5.25" woofer and can also be mounted in the ceiling.

In Stock | Next Day Delivery Available

SKU DALI-CI-H-50
Colour White


Description / DALI PHANTOM H-50 In-Wall Speaker | Pair

PHANTOM H-50: A TRUE FULL-RANGE SPEAKER

The compact PHANTOM H-50 in-wall speaker delivers impressive clarity with bass that's larger than its physical form. Equipped with a 5¼" woofer, the PHANTOM H-50 is designed for in-wall installations but performs equally well as an in-ceiling speaker.

The DALI PHANTOM H-50 is an in-wall speaker built around innovative loudspeaker technologies, such as our signature woofer cone made from a mix of paper pulp and wood fibre. The PHANTOM H-50 is a true full-range loudspeaker and needs no additional subwoofer – it's all about Hi-Fi sound, versatility and flexibility.

COMPACT DESIGN

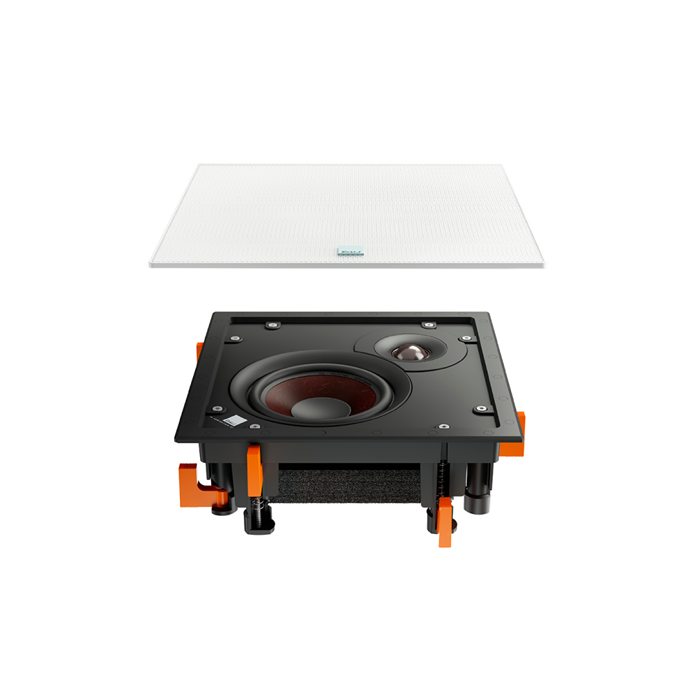

Bringing the virtues of traditional cabinet speaker design to in-wall speakers, the DALI PHANTOM H-50 combines compact design with Hi-Fi performance. The drivers are securely mounted in the solid MDF front baffle with the tweeter placed close to the woofer for optimum integration. Installing the PHANTOM H-50 is also quick and easy, thanks to the dogleg mounting system that secures the speaker in place in seconds.

HIGH QUALITY CROSSOVER

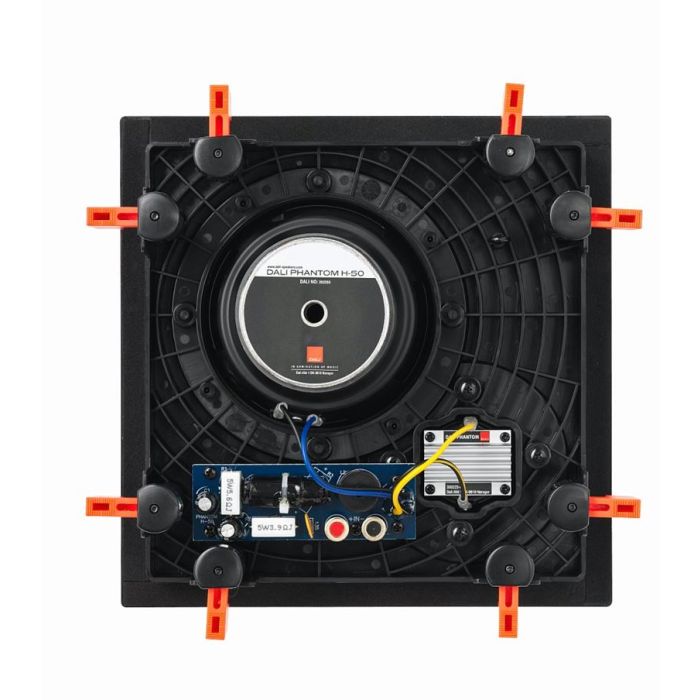

Every crossover component has been selected for its audiophile quality. The crossover includes a PPTC (Polymeric Positive Temperature Coefficient device) safety function – also referred to as a resettable fuse – which safeguards the driver components from overheating if played at very loud volumes over a long period. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.

LIGHTWEIGHT SOFT DOME

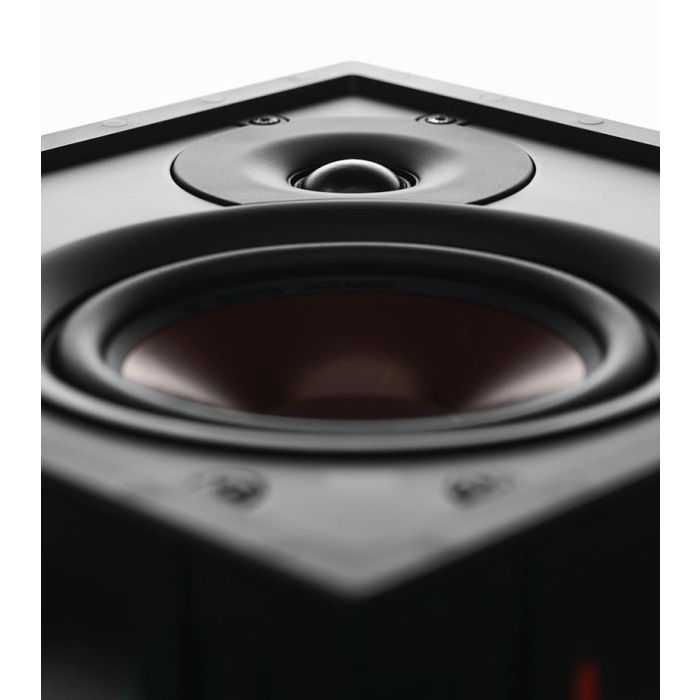

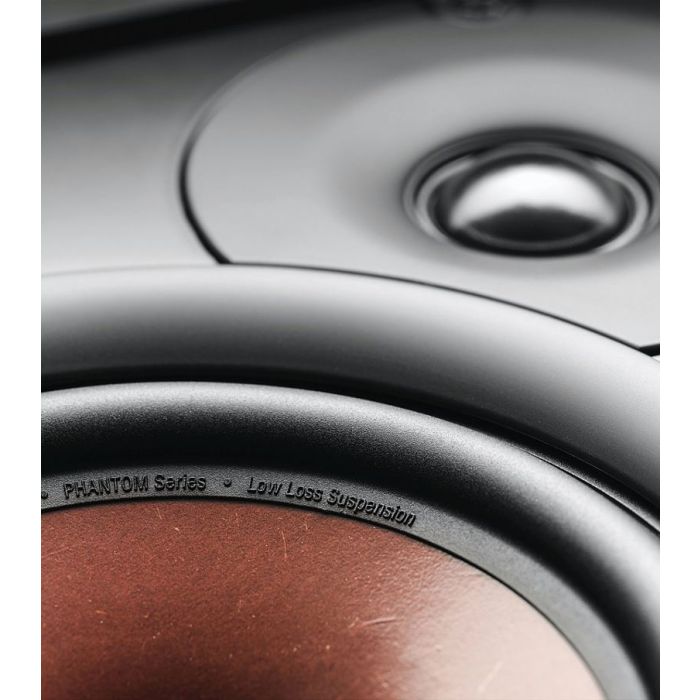

The ultra-lightweight weave fabric and high-performance magnet motor system endow the 28 mm soft dome tweeter with more accuracy and detail in the high frequencies than other tweeter designs. By positioning the tweeter front plate near the dome, the PHANTOM H-50 combines extended frequency response with wide dispersion and low colouration to improve the integration with the woofer.

WOOD FIBRE CONE

A true Hi-Fi speaker can deliver a believable soundstage and render even the smallest microdetails without colouration. Using our signature wood fibre cone technology, the PHANTOM H-50 woofer reproduces every small detail in the music, delivering high resolution midrange and precise, coherent bass.

WIDE DISPERSION

All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling.

animated cone circleanimated cone circle

TRADITIONAL SPEAKER TECHNOLOGIES


The high-end PHANTOM install speakers are packed with traditional speaker virtues. Not only are the wood fiber cones and ultra-lightweight soft dome tweeters mounted in a classic MDF baffle, the placement of the drivers is just similar to our traditional speakers.

two animated bookshelf speakerstwo animated bookshelf speakers

WIDE DISPERSION


All speakers by DALI are designed around the principle of wide dispersion. This entails an off-axis optimisation of the audio reproduction. The technology is perfect for use in install speakers, since they are always mounted flush against either a wall or ceiling.

animated bookshelf speaker front and backanimated bookshelf speaker front and back

INVISIBLE DESIGN


The very thin magnetic front grilles integrates almost seamlessly into any home environment.

animated drillanimated drill

EASY INSTALLATION


The dogleg mounting system makes the install process an easy one-step action simply by tightning the dedicated screws to swing out the dogleg brackets.

Two white Speakers in-wall in a modern house next to a black pianoTwo white Speakers in-wall in a modern house next to a black piano

Specification

SKUDALI-CI-H-50
Lead TimeIn Stock | Next Day Delivery Available........
Speaker Grille ShapeSquare
ColourWhite
ManufacturerDali
Overall Height275
Overall Depth95 mm
Impedance (Nominal)6
Sensitivity ([email protected])88 dB
Maximum SPL105 dB
Recommended Amp30 - 120 W
Drivers Unit Complement1 x 28 mm Soft Textile Dome, 1 x 5,25" Wood Fibre Cone
Weight (Kg)2.2 kg
