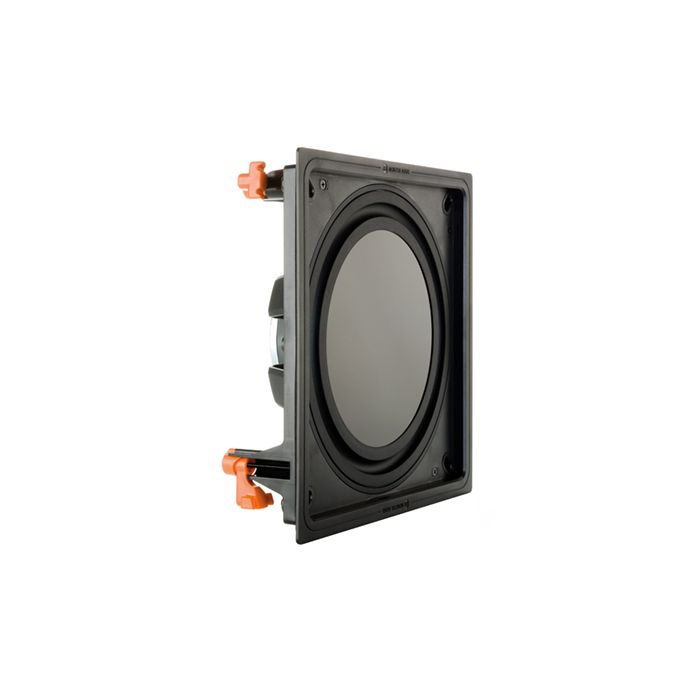

The IWS-10 is specified to produce excellent bass quality in a range of wall, ceiling, even floor locations, ideally but not exclusively with its IWB-10 back box.
Requires Monitor Audio IWA-250 Amplifier.
The IWS-10 subwoofer driver employs a rigid, flat 10” surface of 10 mm (3/8") RDT material derived from Monitor audio’s acclaimed ‘Platinum’ series of high-end speakers. A large vented pole helps to move air quickly, reducing power compression and increasing heat dissipation.
It features Monitor Audio’s patented Tri-Grip clamping system and paintable trim-less grille and frame edge.
|Speaker Grille Shape||Square|
|Overall Diameter||302 x 302 x 92.28 mm|
|Overall Depth||92.28 mm|
|Mounting Depth||89.98 mm|
|Cut-Out Diameter||280 x 280 mm|
|Frequency Response||28 Hz – 120 Hz (when mounted in optimum enclosure)|
|Impedance (Nominal)||8 Ohms|
|Sensitivity (1W@1M)||86 dB|
|Maximum SPL||(Partnered with IWA-250) Single unit 109.8 dB; Pair 115.8 dB|
|Power Handling (RMS)||150 W|
|Drivers Unit Complement||1 x flat 10” surface of 10mm (3/8”) RDT®|
|Fixing Type||4 position Tri-Grip® dog leg fixings|
|Construction Material||Mineral Filled ABS Plastic (RoHS2 Compliant)|
|Weight (Kg)||3.8 kg|
|Boxed Weight (Kg)||15.0000|
|Box Length (cm)||30.0000|
|Box Width (cm)||30.0000|
|Box Height (cm)||30.0000|
