Features
Between 2" stud frames or where pipework or cabling reduces mounting depth, the hybrid back-box construction and proprietary full-range driver array combine to deliver consistent audio quality with exceptional installation versatility.
The hybrid back-box provides the best of all worlds for installer and customer. Combined, the three proprietary 3" mid-bass units achieve the bass output of a 6 1/2" driver, all from a super-stealthy flush-fitted profile.
In keeping with Monitor Audio’s renowned design rigour, the crossover comprises high quality film capacitors and low loss inductors - selected for signal integrity - ensuring peerless audio detail and dynamics from a speaker of its size and application. When the CSS230 is in ‘ported’ mode, a fine gauze protects the acoustic system from dust ingress.
Optional square or premium grille can be used with this model.
Key Features
- Super-slim mounting depth 50 mm (2") designed to fit within 2” stud walls or where space is restricted

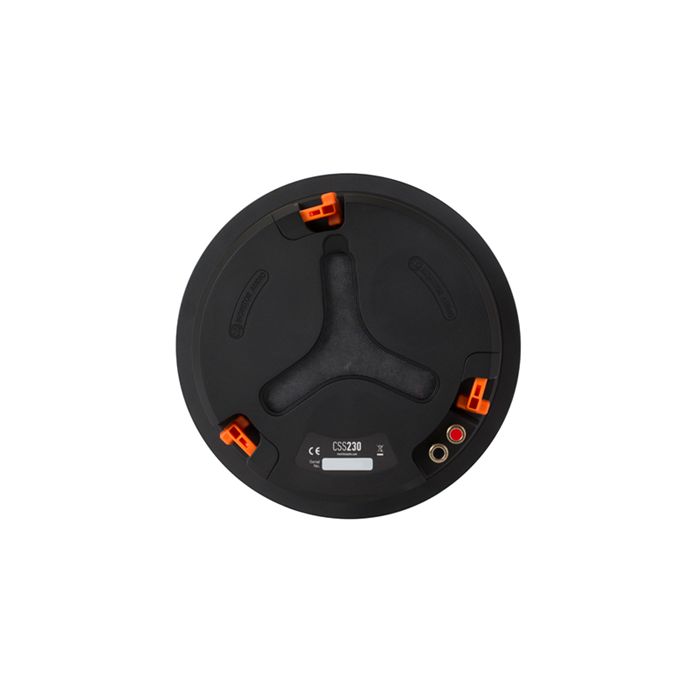

- Hybrid CP ‘Controlled Performance’ style, enclosed or open back-box option provides flexible high performance options and sound isolation in one (pictured right)

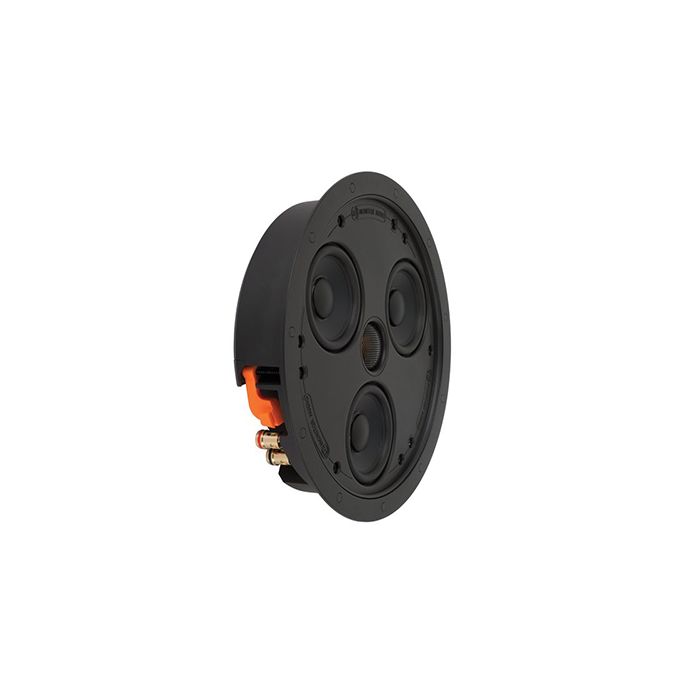

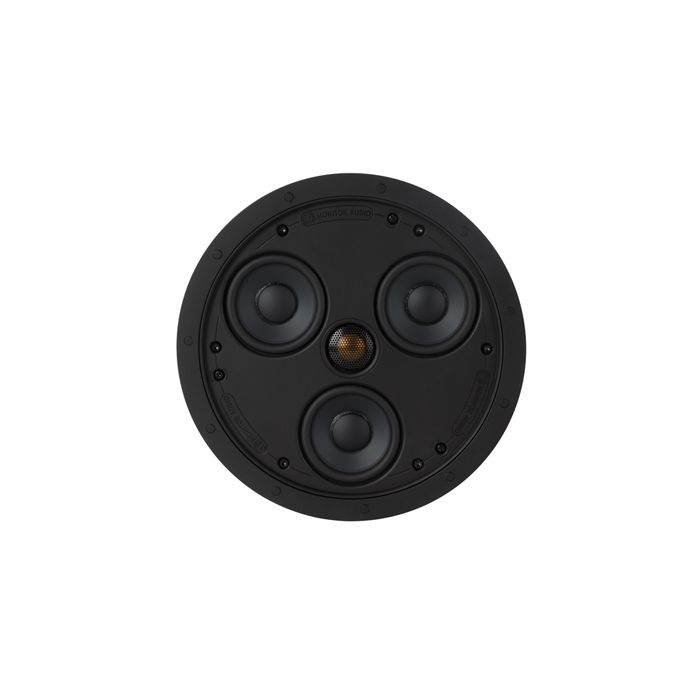

- Driver configuration of three 3" C-CAM bass/mid-range drivers in a radial array around a 19 mm C-CAM Gold Dome tweeter (fixed position) and high quality crossover design offers Monitor Audio’s award-winning signature sound quality

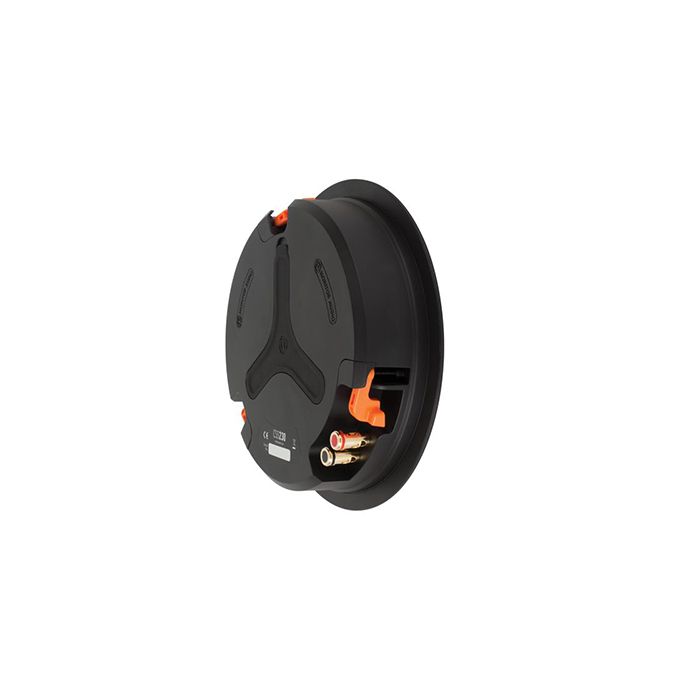

- Gold plated sprung push terminals are reliable and easy to connect

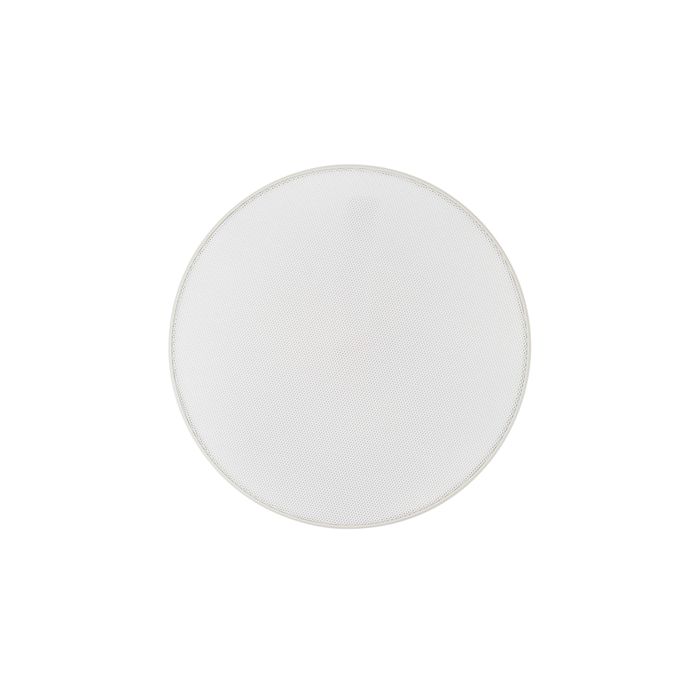

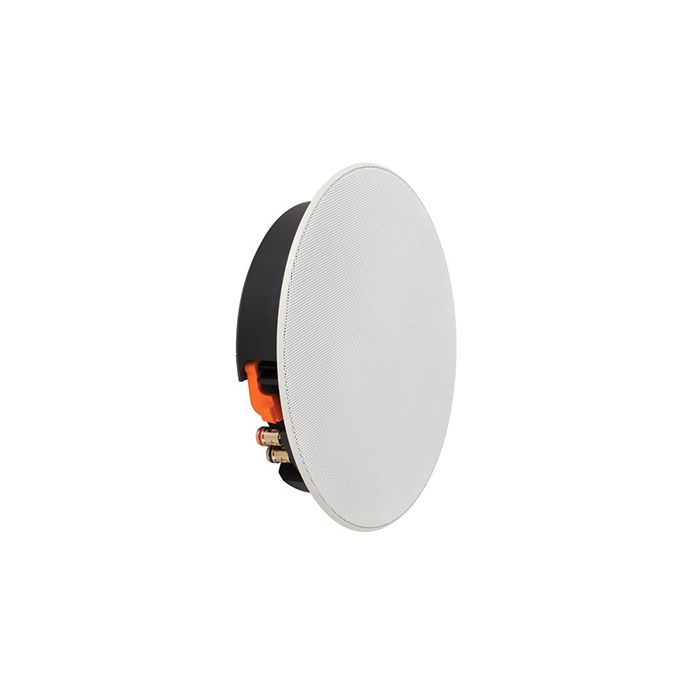

- Magnetically attached ‘Trim-less’ round and square grille options for discreet, reliable and easy servicing, flexible in-wall/ceiling installation, paintable to blend with décor
- Patented Tri-Grip dog leg fixings – Reliable, robust and quick to install
- Existing CB6 pre-construction bracket for easier system design and planning
Specifications
| Manufacturer | Monitor Audio |
|---|---|
| Model | MA-CSS230 |
| Colour | Black |
| Overall Diameter | 250 mm |
| Overall Depth | 54 mm |
| Mounting Depth | 50 mm |
| Cut-Out Diameter | 211 mm |
| Frequency Response | 100 Hz – 30 kHz sealed ‘CP’ (85 Hz – 30 kHz –open back) |
| Impedance (Nominal) | 8 ohms |
| Sensitivity (1W@1M) | 86 dB |
| Maximum SPL | 103.8 dBA |
| Power Handling (RMS) | 40 Watts – Full range (60 watts with crossover set to 100 Hz @ 12 dB/Octave) |
| Recommended Amp | 10 - 60 W |
| Drivers Unit Complement | 3 x 3" C-CAM cone bass-mid drivers 1 x 19 mm (3/4") C-CAM Gold Dome tweeter |
| Adjustment Controls | N/A |
| Fixing Type | 3 position Tri-Grip dog leg fixings |
| Construction Material | ABS (UL94 rated, RoHS2 Compliant) – Painted steel grille |
| Weight (Kg) | 2.88 kg (6 lb 5 oz) |
| Warranty | 5 years return to base. |
| Boxed Weight (Kg) | 5.000000 |
| Box Length (cm) | 30.000000 |
| Box Width (cm) | 30.000000 |
| Box Height (cm) | 20.000000 |
