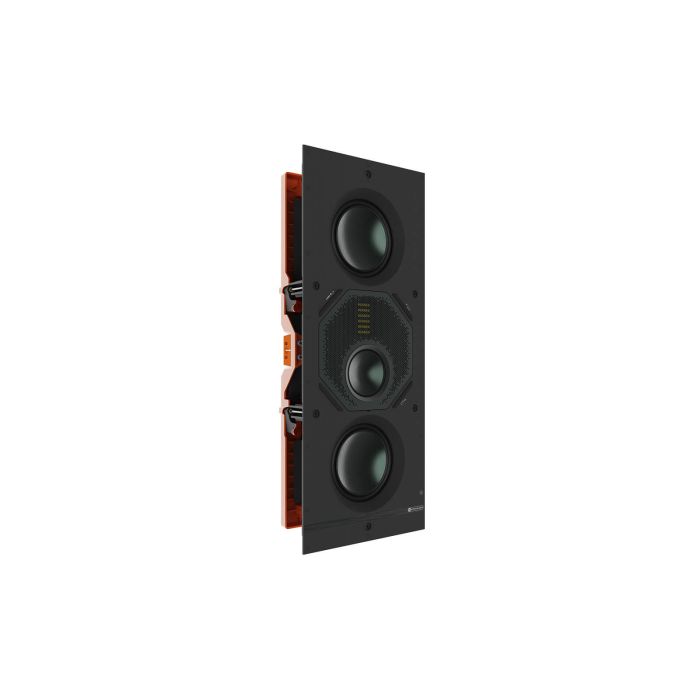

Description / Monitor Audio Creator Series W3M In-Wall Speaker
This high-performance, large Tier 3 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model based on the Platinum Series 3G, and features the very latest acoustic technologies from Monitor Audio. This includes an MPD II high-frequency transducer, developed for the THX Certified Ultra Cinergy range. The precision specification of the Micro Pleated Diaphragm technology is designed to produce accurate, lifelike sound without any distortion. This is coupled with a C-CAM midrange driver and two RDT III bass drivers.
This combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of his acoustic technology was developed. This really is the last word in installed performance.
It has a cut out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Key Features
- Ideal for installations where high-performance acoustics are desired
- Three-way design
- 1 x MPD II transducer for breathtakingly precise high-frequency performance
- 1 x 3" (76 mm) C-CAM midrange driver
- 2 x 5" (127 mm) RDT III bass drivers for full bass
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Specifications
| SKU | MA-SCSW3M |
|---|---|
| Lead Time | In Stock | Next Day Delivery Available........ |
| Speaker Grille Shape | Square |
| Colour | White |
| Manufacturer | Monitor Audio |
| Overall Width | 231 mm |
| Overall Height | 560 mm |
| Overall Depth | 90 mm |
| Mounting Depth | 85 mm |
| Cut-Out Size | 527 x 198 mm (L x W) |
| Frequency Response | 45 Hz – 60 kHz |
| Impedance (Nominal) | 6 ohm |
| Sensitivity (1W@1M) | 88 dB |
| Maximum SPL | 122 dB |
| Speaker Type | 3-Way |
| Recommended Amp | 60 – 225 W |
| Drivers Unit Complement | 2 x 5" (127 mm) RDT III bass driver 1 x 3" (76 mm) C-CAM midrange driver 1 x MPD II transducer |
| Enclosure Type | Open Back |
| Crossover Frequency | LF/HF: 650 kHz MF/HF: 3.5 kHz |
| Weight (Kg) | 4.7 kg |
| Warranty | Lifetime Warranty |
