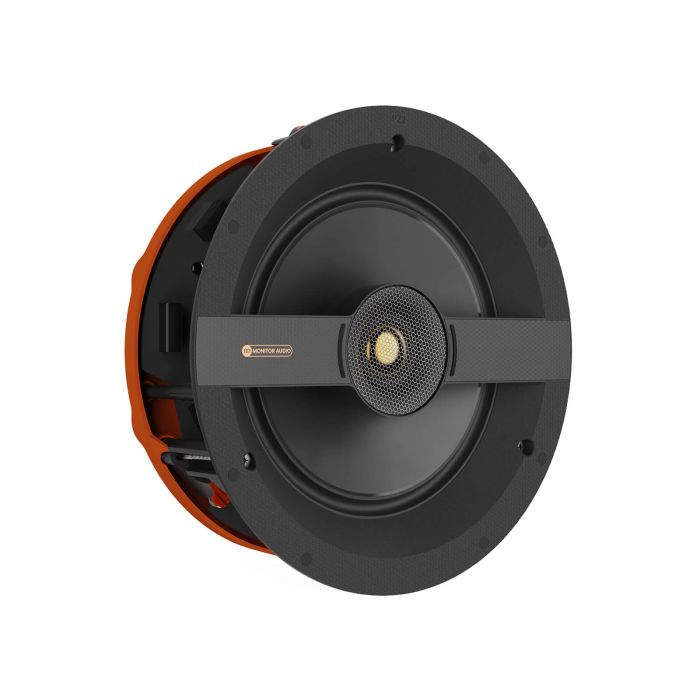

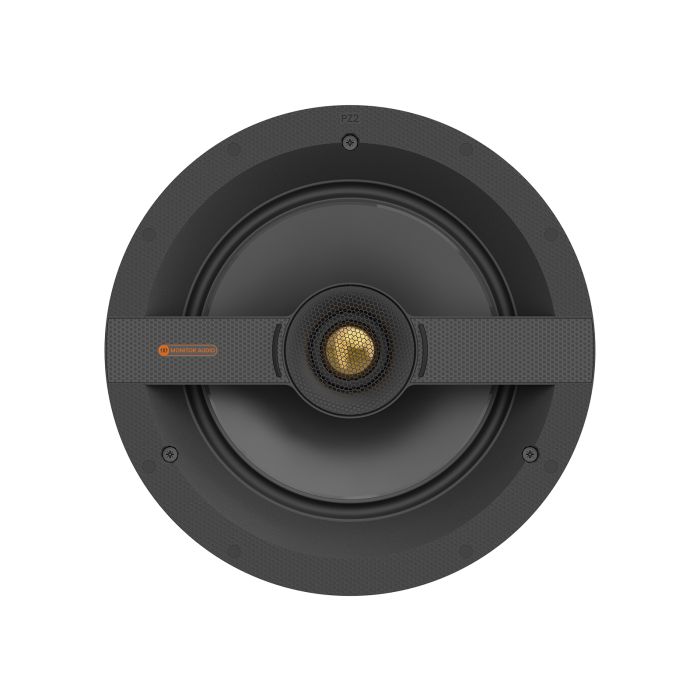

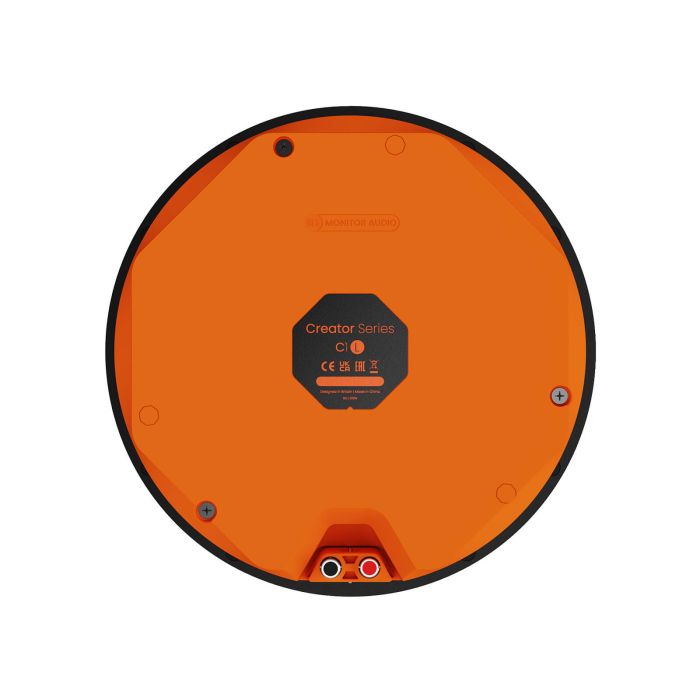

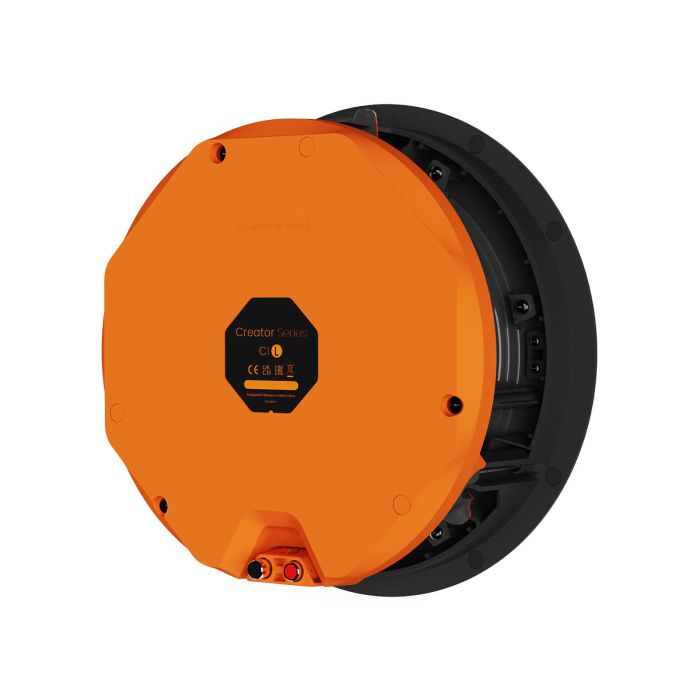

Description / Monitor Audio Creator Series C1L In-Ceiling Speaker
This large Tier 1 in-ceiling loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Optional square grille can be used with this model.
Key Features
- Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
- Two-way design
- 1 x 1.25" (32 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
- 1 x 9" (229 mm) C-CAM mid-bass driver for clear mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Specifications
SKU | MA-SCS1L |
---|---|
Lead Time | In Stock | Next Day Delivery Available........ |
Speaker Grille Shape | Round |
Colour | White |
Manufacturer | Monitor Audio |
Overall Diameter | 248 mm |
Overall Width | 278 mm |
Overall Height | 278 mm |
Overall Depth | 103 mm |
Mounting Depth | 99 mm |
Cut-Out Size | 248 mm |
Frequency Response | 30 Hz – 25 kHz |
Impedance (Nominal) | 8 ohm |
Sensitivity (1W@1M) | 88 dB |
Maximum SPL | 116 dB |
Speaker Type | 2-Way |
Recommended Amp | 40 – 150 W |
Drivers Unit Complement | 1 x 9" (229 mm) C-CAM mid-bass driver 1 x 1.25" (32 mm) C-CAM tweeter |
Enclosure Type | Open Back |
Crossover Frequency | LF/HF: 2 kHz |
Weight (Kg) | 2.5 kg |
Warranty | Lifetime Warranty |
