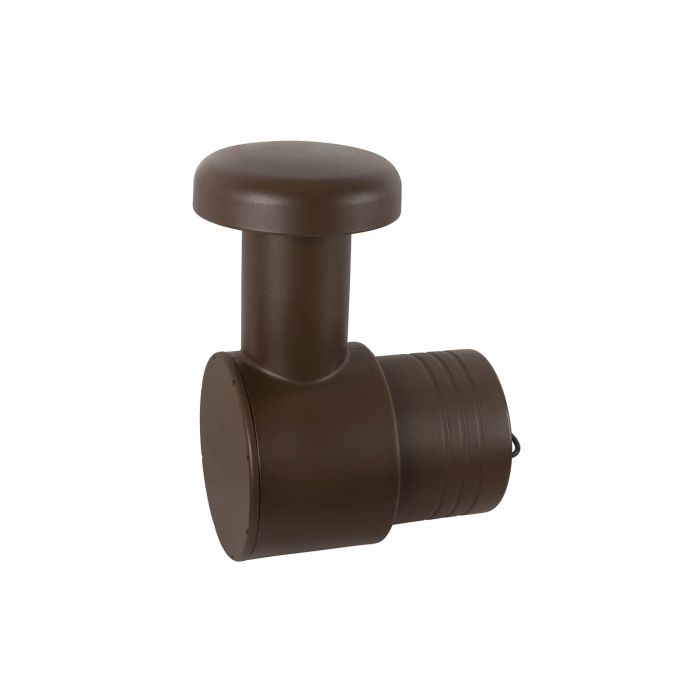

From this little ‘chimney’ powerfully taut bass frequencies will join the clean mids and highs of the surrounding CLG140/CLG160 satellites for punchy and articulate full-range garden sound.
The CLG-W12 can be powered from a single amplifier channel at 4 ohms, with its 70/100 V line option recommended for cable runs over 10m (30ft) and for adding subwoofers to the system. In this line configuration, the CLG140/CLG160 satellites are daisy-chained to the CLG-W12, one after the other, up to a recommended maximum of twelve per subwoofer. System expansion to larger garden spaces simply involves the addition of amplifier channels, subwoofers and satellites.
In the simplest designs, satellites are connected in a mono configuration to one amplifier channel, the other channel powering the subwoofer. The use of a stereo power amplifier with 70/100volt line capability and crossover features will allow the adjustment of levels between bass and mid-high range. Alternatively, the system can be designed to provide stereo operation by adding elements to create left/right zones.
When installed the Climate Garden System delivers a smooth, wide-open and controlled frequency response from 30 Hz to 30 kHz in the targeted environment: better than many home audio systems! For patio or deck applications, the CLG-W12 will install within a planter box to enhance Monitor Audio’s CL Series all-weather cabinet speakers with deep bass frequencies, giving custom installers additional design options.
- Below ground garden installation. On patios or decks will install within a suitably sized planter
- Extended response down to 30 Hz
- Long throw 12" sub-woofer driver featuring C-CAM cone technology and rigid die-cast chassis
- Bandpass cabinet enclosure delivers high efficiency and punchy, extended bass
- 70/100 V and 4 ohm tap for flexible system design: additional units can be added and ‘daisy-chained’ together
- Robust moulded cabinet: strong and waterproof with fewer joints to compromise structural integrity
- Certified to IP54 Ingress Protection rating
- Dark brown finish blends with garden colours
- Applications: garden, deck and patio, theme parks
|Frequency Response||30 Hz — 100 Hz|
|Amplifier Power Output||100 — 250 W|
|Drivers Unit Complement||1 x 12" C-CAM cone, long throw sub-bass driver|
|Power Supply||100-240VAC 50/60Hz|
|Power Usage||250 W|

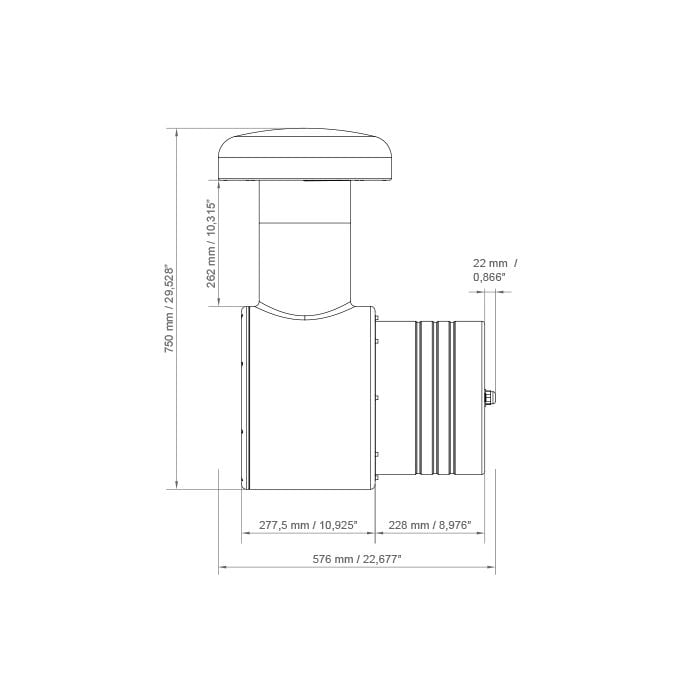

|Width (mm)||380 mm|
|Depth (mm)||505.5 mm|
|Height (mm)||750 mm|
|Weight (Kg)||19.5 kg|
|Warranty||5 Year Warranty|
|Boxed Weight (Kg)||22.000000|
