JBL Conceal C62 Invisible Speaker

The JBL Conceal C62 Invisible Loudspeaker is a compact 2-way design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. The finished loudspeaker panel installs easily and disappears completely into the surrounding walls and ceiling.

The JBL Conceal C62 panel includes a rigid frame that houses the drivers and acoustic components that would be found on a conventional visible architectural in-wall or in-ceiling loudspeaker. The frame attaches directly to the structural framing of the wall, while the face of the loudspeaker – the FidelityGlass™ panel – features a smooth and durable surface that is designed to be finished in a similar fashion to the wallboard surrounding it. With the edges of the loudspeaker flush to the wallboard, the seams are taped and spackled using common methods and techniques. Once sanded and properly prepared, you simply need to paint or wallpaper the surface of the loudspeaker to match your desired finish.

The C62 contains a drive element working in tandem with the FidelityGlass™ acoustic panel to provide the high-and mid-frequency component of the sound. The panel also utilizes a 6.5-inch low-frequency driver working in tandem with the FidelityGlass panel to deliver bass performance. This combination of drivers and patented technologies results in high-performance sound that rivals that of traditional in-wall loudspeakers.

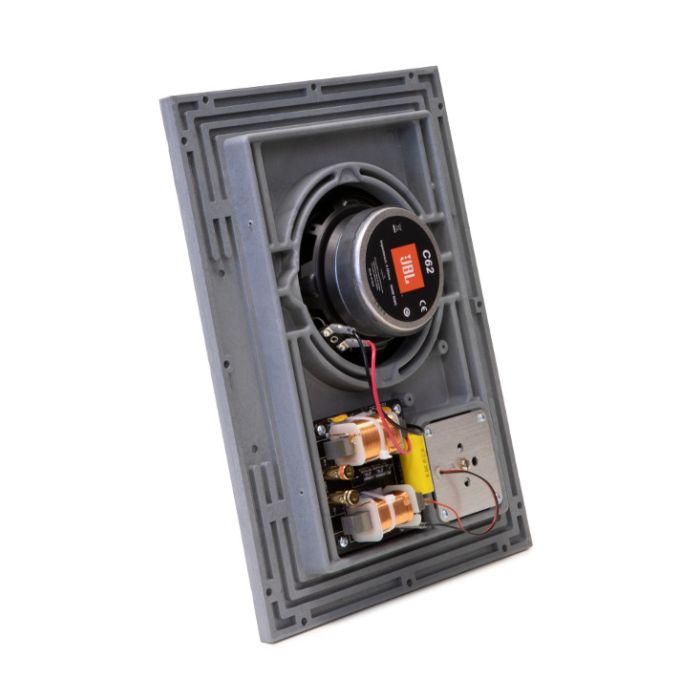

The foundation of the panel of the C62 is a compression molded baffle that provides a rigid frame for the entire assembly. The FidelityGlass acoustic panel is affixed to the frame and serves as the diaphragm for the transducers. Within the panel, one neodymium mid-and high-frequency driver works in harmony with the custom materials and tuning of the FidelityGlass panel to deliver pristine details and accurate sound. Balancing out the C62 system, a 6.5-inch (165mm) high-power woofer operating in conjunction with the FidelityGlass panel and a tuned enclosure delivers the bottom end. The integrated wooden back box enclosure helps to focus the sound into the room and minimize acoustic intrusion into adjacent spaces.

• One-piece design with 6.5-inch (165mm) LF driver and single-element MF/HF driver
• Proprietary FidelityGlass™ acoustic panel and compression molded baffle
• Loudspeaker system installs like a standard plasterboard patch
• Custom designed transducers with JBL premium acoustic crossover network

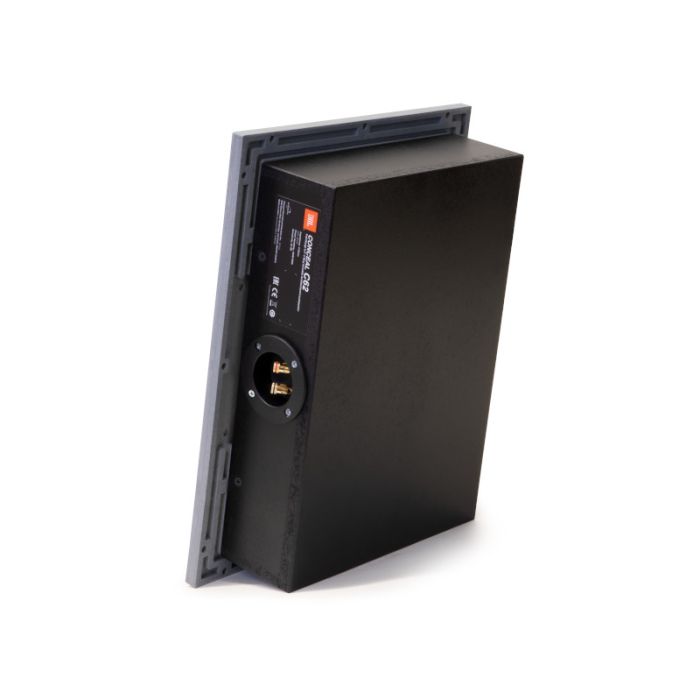

• Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces
• Paintable surface can be custom finished for complete invisibility
