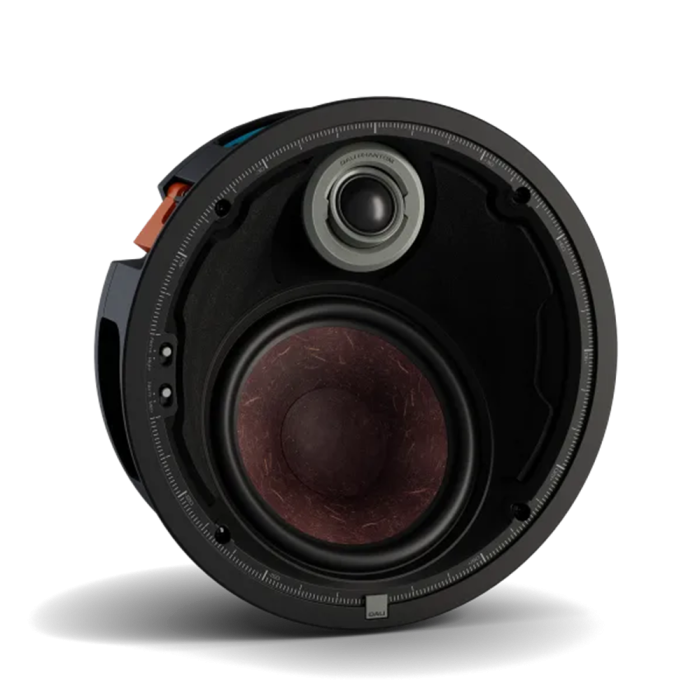

Dali PHANTOM M-80 A

The PHANTOM M-80 A HiFi ceiling speaker features a 7" driver with SMC technology, set at a fixed 25° angle, along with an adjustable 28mm tweeter for precise directional sound projection. It is ideal for front-firing, surround sound, and height channel applications where in-ceiling speakers are preferred. Delivering exceptional audio performance, the PHANTOM M-80 A sets a new standard for sound quality in the Custom Install HiFi in-ceiling speaker market.

With a powerful 7 inch bass/midrange driver angled at 25° and an adjustable tweeter, the PHANTOM M-80 A (angled) lets you direct the sound with precision for optimum dispersion and the best-possible sound quality at the listening position. The M-80 A also incorporates our compass-style direction indicators that make fine adjustments quick and convenient.

With its angled drivers, the discreet M-80 A in-ceiling speaker recreates the immersion of a traditional floor, wall or shelf-mount home theatre setup. Delivering exceptional LCR (left, centre, right), surround and height channel audio, the M-80 A is the perfect solution when floorspace is limited, side and rear walls are not suitable for mounting speakers or when a more discreet setup is preferred.

Designed to complement our high-performance M-series in-wall speakers, the M-80 A's 7 inch bass/midrange driver with lightweight paper and wood fibre cone, low-loss rubber surround and DALI's patented SMC-based magnet system offers rich, full low frequencies and a natural, uncoloured midrange. Combine that with the new oversized 28 mm soft dome tweeter with an impressively extended and detailed upper-frequency response and you have a speaker that offers class-leading sound quality in the angled in-ceiling speaker category.

The simple dogleg clamp system and magnetic grille make installing the M-80 A quick and convenient with no need for special tools. Simply connect the speaker cables using the spring terminals and insert the speaker into the aperture – only 134 mm mounting depth required. Fine-tune using the compass-style markings and turn the four clamp screws to secure the speaker in place. Then fit the magnetic grille over the speaker and you're done.

The newly developed, oversized 28 mm tweeter generates higher sound pressures with less excursion for exceptional driver control. The oversized design also extends low-frequency response, providing a more seamless handover from the bass/midrange driver that creates a naturally balanced, effortless and coherent midrange performance.
